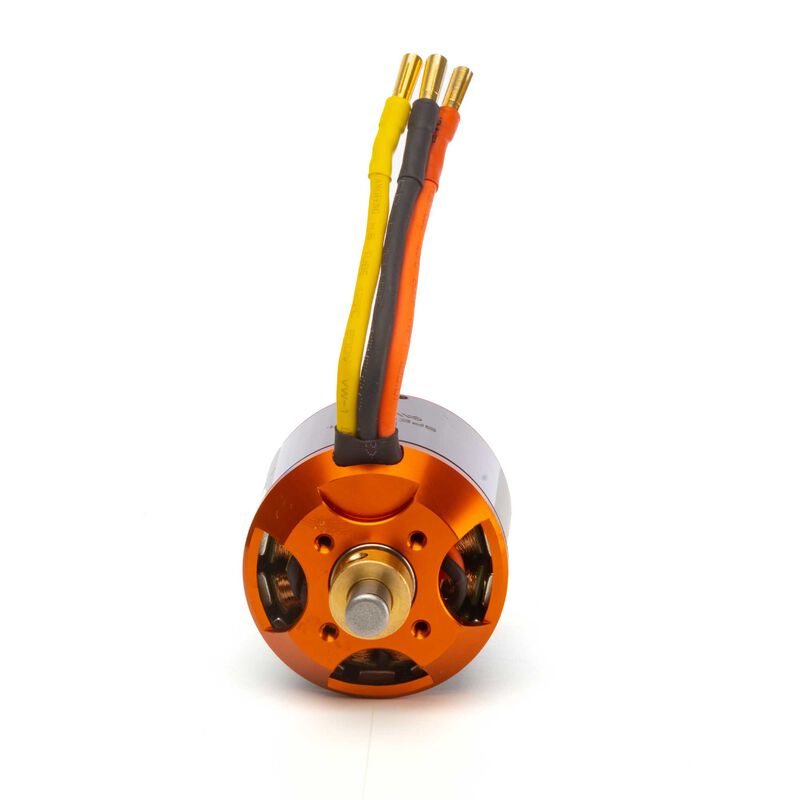

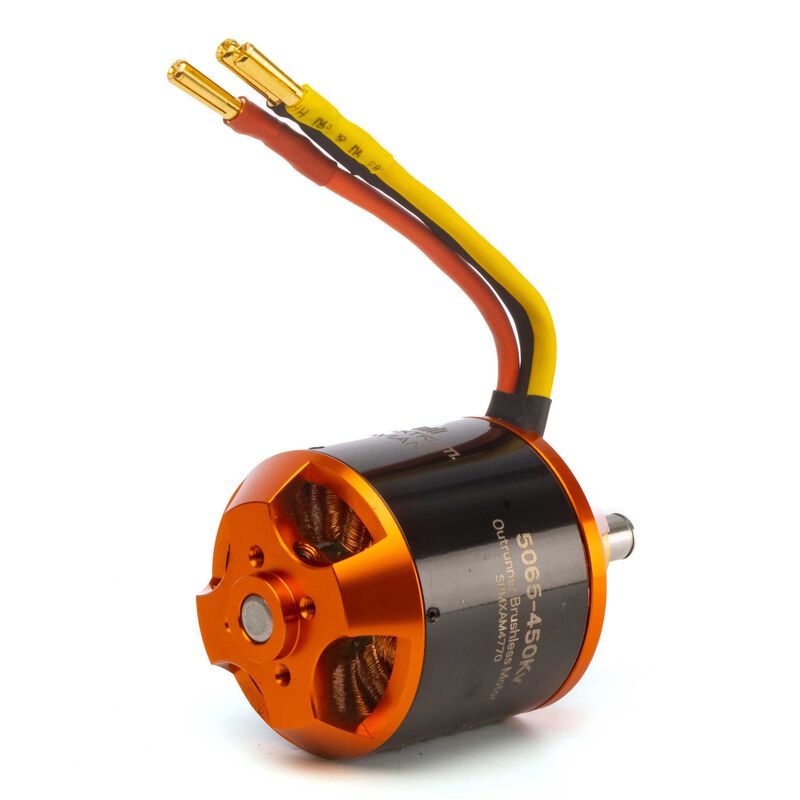

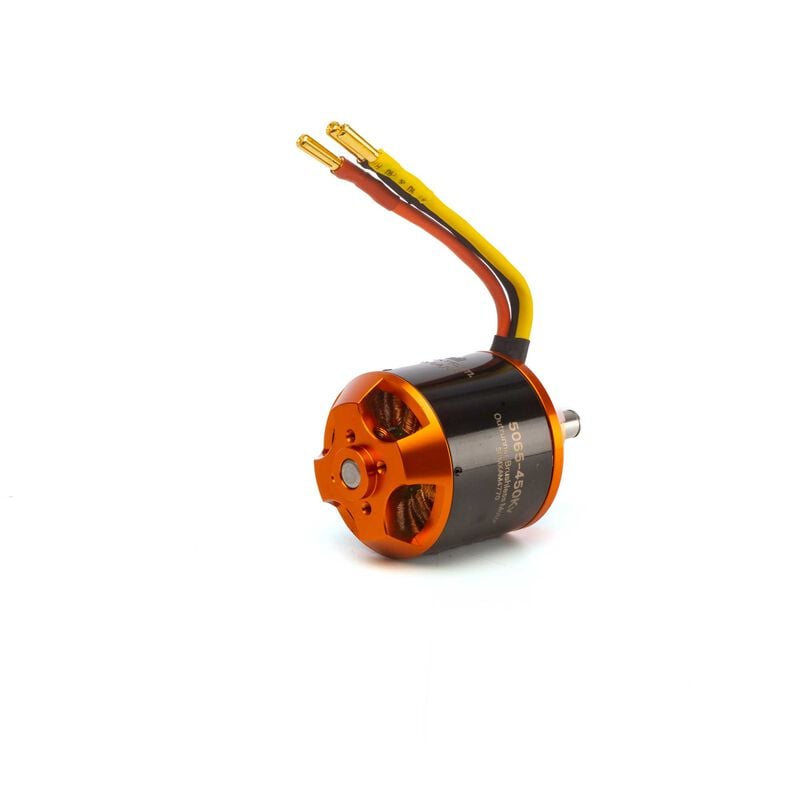

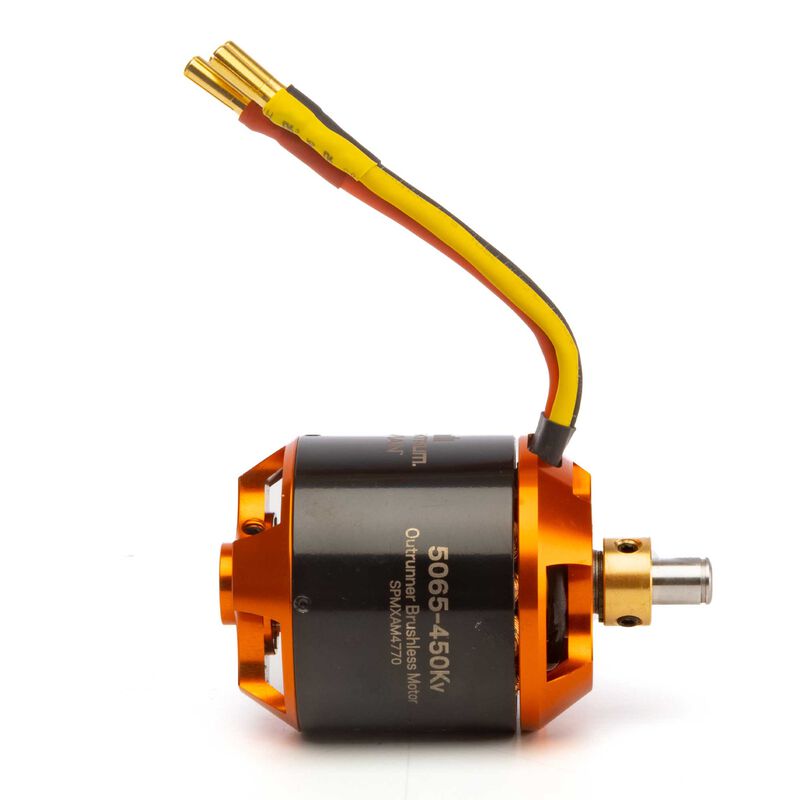

Spektrum Avian SPMXAM4770 5065 450Kv 20cc Series Brushless Outrunner Electric Motor


Payment Methods

Visa Mastercard Amex Discover Jcb Diners Paypal


Here you have a "BRAND NEW" Spektrum Avian SPMXAM4770 5065 450Kv 20cc Series Brushless Outrunner Electric Motor !!

Here is an opportunity to pick up a Great Motor as a replacement or for that new project at a reasonable price !!

These motors retail for $159.00 and more !!

Here is a chance to get one at a reasonable cost.

This is a Limited Time Offer While Supplies Last, so act now or loose out !!

You can't go wrong on this one when it is NEW, and if you buy now you will receive it in just a few days !!

OK, so Thank You For Looking and Please check my store for more "BUY IT NOW OFFERS" For More Motors,. ESC's, Batteries, Parts, Heli's, Planes, Upgrades, Accessories And Many More GREAT DEALS !! Thank You: Ted.

PS. International Bidders Welcome !! Please E-Mail Ahead For Shipping Estimate.

Thank You: Ted..

Key Benefits

Rapid Speed and Extreme Torque: Expertly engineered to deliver fast, smooth and precise speed and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.


Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

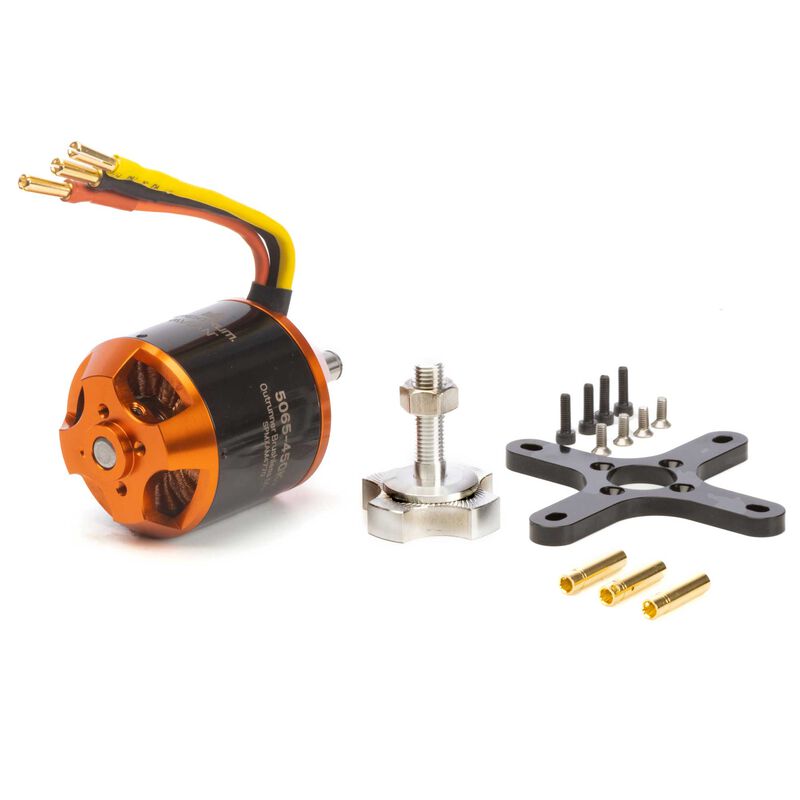

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 100 amp ESC
Perfect electric conversion upgrade for 20cc size gas combustion power systems

Important Specs

Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
Recommended Propeller Range – 16x6 to 17x8 Electric Propeller
Recommended Model Flying weight – 3D 4080 g (9 lbs) - Sport 6520 g (14.5 lbs)
Max Wattage – 1200w
Max Current – Max Burst Amps (85A) Max Continuous Amps (80A)

Connector Type
4mm Bullet
Product Length
2.6" (66 mm)
Outer Diameter
2" (51 mm)
Maximum Burst Current
Maximum Continuous Current
Idle Current (Io)
Input Voltage
18.5 - 22.1V
Recommended Speed Control
RPM/Volt (Kv)
Shaft Length
0.79" (20 mm)
Adjustable Timing
Product Weight
14.1oz (400g)
Shaft Diameter
0.32" (8 mm)
Motor Type
Motor Design
Powered by
